Electronică de evaluare pentru aplicații metrologice

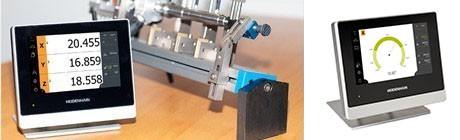

Electronica de evaluare pentru aplicați metrologice oferă numeroase funcții pentru achiziția datelor măsurate și pentru evaluarea valorilor măsurate.

Cu TOOL-CHEK aveți la dispoziție o electronică de evaluare cu funcții speciale pentru utilizarea la aparate pentru presetarea sculelor.

Electronica de evaluare QUADRA-CHEK pentru proiectoare de profil, microscoape pentru măsurare, mașini de măsurat în coordonate 2D și video măsoară puncte pe contururi 2D, depinzând de versiune, automat sau manual cu ajutorul cătării, cu ajutorul recunoașterii optice a muchiilor sau cu cameră video – cu afișare în timp real a imagini live și procesarea imagini integrată. La contururi 3D, ca de exemplu plane, cilindru, con și bilă punctele măsurate sunt salvate prin tastare cu un sistem de tastare.

În versiunea opțională CNC, ele operează ca și o comandă numerică pentru poziționarea axelor și lasă programele de măsurare să ruleze automat.

2-D and 3-D measuring tasksDisplayFunctionsModel
ND 100 QUADRA-CHEK
Evaluation electronics for
• Profile projectors
• Measuring microscopes
Mono-
chrome
• Measurement of 2-D features
• Point measurement with crosshairs
• Graphic display of measurement results

ND 122

ND 123

ND 1200 QUADRA-CHEK
Evaluation electronics for
• Profile projectors
• Measuring microscopes
• 2-D measuring machines
Monochrome• Measurement of 2-D features
• Measure Magic function
• Point measurement with crosshairs
• Programming of features and parts
• Graphic display of measurement results
ND 1202
ND 1203
ND 1204
ND 1300 QUADRA-CHEK
Evaluation electronics for
• Profile projectors
• Measuring microscopes
• Video measuring machines
Color touchscreen

•Measurement of 2-D features
• Measure Magic function
• Point measurement with crosshairs
• Programming of features and parts
• Graphic display of measurement results
ND 1302
ND 1303
ND 1304
ND 1400 QUADRA-CHEK
Evaluation electronics for
• Manual coordinate measuring machines
Color touchscreen• Measurement of 2-D and 3-D features
• Points measured via touch probe, crosshairs or rigid probing element
• Measure Magic function
• Programming of features and parts
• Graphic display of measurement results
• Five coordinate systems can be stored
• Touch-probe management
ND 1404
QUADRA-CHEK 3000
Evaluation electronics for:
• Profile projectors
• Measuring microscopes
• 2-D measuring machines
• Video measuring machines
Color touchscreen• Acquisition of 2-D geometry features by measurement,  design and defi nition of geometries
• Measuring point acquisition via crosshairs
• Creation of measuring programs (teach-in)
• Tolerance input and graphic display of measurement results
• Creation and output of measurement reports
• User management
• Measure Magic: automatic recognition of geometries
QC 3014 NC
QC 3024 NC
IK 5000 QUADRA-CHEK
Evaluation electronics as the universal PC package solution for
• Profile projectors
• Measuring microscopes
• Video measuring machines
• Coordinate measuring machines
PC screen• Measurement of 2-D and 3-D features (depending on the version)
• Point measurement with crosshairs
• Programming of features and parts
• Graphic display of measurement results
• Entry of tolerances
• Import of CAD drawings for direct comparison
• 3-D profiling (option; only with touch probe)
IK 5000
Measuring and testing tasks               DisplayFunctionsModel
ND 200
Evaluation electronics for
• Measurement equipment
• Adjustment and inspection equipment
• SPC inspection stations
Color• Metrology and statistical functions (sorting and tolerance checking, measurement series, SPC)ND 287
ND 1100 QUADRA-CHEK
Evaluation electronics for
• Positioning equipment
• Measuring fixtures
Monochrome• Measurement series with min./max. value storageND 1102
ND 1103
ND 1104
ND 2100G GAGE-CHEK
Evaluation electronics for
• Multipoint inspection apparatuses
• SPC inspection stations
Color• Programming of up to 100 parts
• Graphic display of measurement results
• Sorting and tolerance checking using tolerance and warning limits
• Measurement series with min./max. value storage
• Entry of formulas and combinations
• Functions for statistical process control (SPC)
ND 2104G
ND 2108G
MSE 1000
Modular evaluation electronics for
• Multipoint inspection apparatuses
• SPC inspection stations
PC screen

• Modular design
• Configurable as desired
• Various interfaces
• Fast communication with higher-level computer systems
• Universal outputs
MSE 1000

EIB 700
Evaluation electronics for
• Testing stations
• Multipoint inspection apparatuses
• Mobile data acquisition
PC screen• Precise position measurement up to 50 kHz updating rate
• Programmable measured-value inputs
• Internal and external measured-value triggers
• Measured-value memory for approx. 250 000 measured values per channel
• Connection over standard Ethernet interface to higher-level computer systems
EIB 741
IK 220
Evaluation electronics for installation in computer systems with PCI interface for
• Measuring and testing stations
PC screen• Programmable measured-value inputs
• Internal and external measured-value triggers
• Measured-value memory for 8192 measured values per channe

IK 220
