Interfeţe electronice

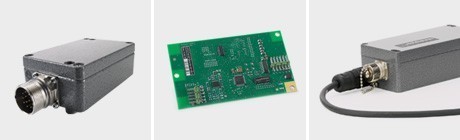

Interfeţele de la HEIDENHAIN adaptează semnalele encoderelor la interfaţa electronicii următoare ( afișaje, comenzii numerice, etc). Ele se folosesc când aparatele electronice în care se trimite semnalul nu pot procesa direct semnalul de ieșire al encoderelor HEIDENHAIN, sau dacă este necesară o interpolare suplimentară a semnalului.

Selection guide

Outputs Interface

Inputs Interface

Design / Protection class

Interpolation or subdivision

Model

TTL

1 VPP

Box design / IP 65

5/10-fold
20/25/50/100-fold
Without
25/50/100/200/400-fold

undefinedIBV101
undefinedIBV102
undefinedIBV 600
undefinedIBV 660B

TTL

1 VPP

Plug design / IP 40

5/10/20/25/50/100-fold

undefinedAPE 371

TTL

1 VPP

Version for integration / IP 00

5/10-fold
20/25/50/100-fold

undefinedIDP 181
undefinedIDP 182

TTL

11 μAPP

Box design / IP 65

5/10-fold
20/25/50/100-fold
Without/5-fold
25/50/100/200/400-fold

undefinedEXE 101
undefinedEXE 102
undefinedEXE 602E
undefinedEXE 660B

TTL

11 μAPP

Version for integration / IP 00

5-fold

undefinedIDP 101

2 x TTL / 1 VPP
Adjustable

1 VPP

Box design / IP 65

2-fold
5/10-fold
5/10-fold and 20/25/50/100-fold

undefinedIBV 6072
undefinedIBV 6172
undefinedIBV 6272

EnDat 2.2

1 VPP

Box design / IP 65
Plug design / IP 40

≤ 16 384-fold subdivision

undefinedEIB 192
undefinedEIB 392

EnDat 2.2

2 x 1 VPP

Box design / IP 65

≤ 16 384-fold subdivision

undefinedEIB 1512

DRIVE-CLiQ

EnDat 2.2

Box design / IP 65

undefinedEIB 2391 S

Fanuc Serial Interface

1 VPP

Box design / IP 65
Plug design / IP 40

≤ 16 384-fold subdivision

undefinedEIB 192 F
undefinedEIB 392 F

Fanuc Serial Interface

2 x 1 VPP

Box design / IP 65

≤ 16 384-fold subdivision

undefinedEIB 1592 F

Mitsubishi high speed interface

1 VPP

Box design / IP 65
Plug design / IP 40

≤ 16 384-fold subdivision

undefinedEIB 192 M
undefinedEIB 392 M

Mitsubishi high speed interface

2 x 1 VPP

Box design / IP 65

≤ 16 384-fold subdivision

undefinedEIB 1592 M

Yaskawa serial interface

EnDat 2.2

Plug design / IP 40

undefinedEIB 3391 Y

PROFIBUS-DP

EnDat 2.1
EnDat 2.2

Top-hat rail design

undefinedPROFIBUS-
Gateway

Box design

Because of their high IP 65 degree of protection, interface electronics with a box design are well suited for a rough industrial environment, for example where machine tools operate. The inputs and outputs are equipped with robust M23 and M12 connecting elements. The stable cast-metal housing offers protection against physical damage as well as against electrical interference.

The EXE/IBV 100 series distinguishes itself from the EXE/IBV 600 series primarily in its compact dimensions.

Plug design

The interface electronics with a plug design save a great deal of space: there is room for the entire interpolation and digitizing electronics in an extended D-sub connector housing. This offers protection against physical damage (IP 40 protection) and electrical interference. Appropriate accessory parts can be used to firmly attach the connecting elements, and stack several connectors on top of each other.

Version for integration

There are also versions of the interface electronics intended for integration in existing electronics. These pluggable boards must be protected against electrical and physical influences.  The IDP series consists of pure interpolation and digitizing electronics, and is intended for integration as input assemblies in non-HEIDENHAIN electronics.

Top-hat rail design

The interface electronics for top-hat rail mounting are suited for operation in an electrical cabinet with simple fastening on a standard DIN rail.
