HEIDENHAIN-METRO

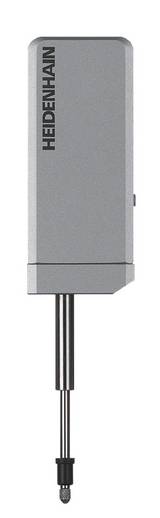

HEIDENHAIN-METRO MT 1200/MT 2500

High accuracy

  • ± 0.2 µm system accuracy

High repeatability

  • Repeatability typically < 0.03 µm with 12 mm measuring range

Zerodur scale

  • Close to 0 ppm/K scale expansion between 0 °C and 50 °C
  • Provides the true measured value

Actuation by cable-type lifter

  • Defined velocity of the plunger
  • No counting errors

Ball-bearing guide

  • Ball-bearing guide with low friction
  • High-precision measuring loop

Properties

Measuring range12 or 25 mm
System accuracy

± 0.2 µm

Repeatability

MT 1200: < 0.03 µm

MT 2500: < 0.09 µm

Short-range accuracy

MT 1200: < 0.03 µm

MT 2500: < 0.04 µm
Plunger actuationBy measured object, cable-type lifter or pneumatic
Interface1 VPP, TTL

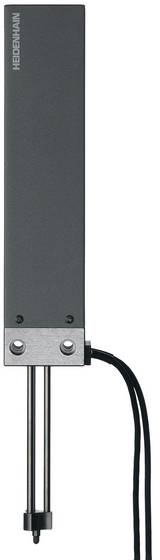

HEIDENHAIN-METRO MT 60/MT 101

High accuracy

  • ± 0.5 µm system accuracy

High repeatability

  • Repeatability typically < 0.04 µm with 100 mm measuring range

Large measuring ranges

  • Measuring ranges of 60 mm and 100 mm

Ball-bearing guide

  • Ball-bearing guide with low friction

  • High-precision measuring loop

Properties

Measuring range60 or 100 mm
System accuracy

± 0.5 µm

Repeatability

MT 60: < 0.06 µm

MT 101: < 0.04 µm

Plunger actuationBy motor or coupling
Interface11 µAPP
