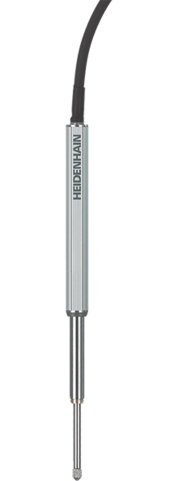

HEIDENHAIN-SPECTO
High degree of protection |
|
Compact size |
|
Ball-bearing guide |
|
Sturdy design |
Properties
| Measuring range | 12 or 30 mm |
| System accuracy | ± 1 µm |
| Repeatability | ST 1200: < 0.25 µm ST 3000: < 0.70 µm |
| Short-range accuracy | < 0.3 µm |
| Plunger actuation | By measured object or pneumatic |
| Protection | Up to IP 67 for 12 mm variants with actuation by measured object IP 64 for all other variants |
| Interface | 1 VPP, TTL |
