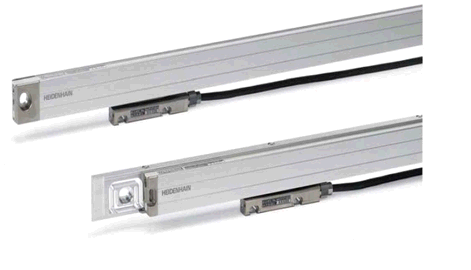

Incremental linear encoders with slimline scale housing LS 477 series
LS 477C 270 3.0 C001 .. 10A 4ZS14 TTLx20 50.00 90 OT 2F 01 ..
| Ident number | 605360-05 |
|---|---|
| Measuring length | 270 mm |
| Total length | ML+105 mm |
| Accuracy grade | ± 3.0 µm |
| Grating period | 20.000 µm |
| Fastening type | End block + mounting spar |
| Output signal | Square-wave signals, TTL levels with 20-fold interpolation |
| Reference mark position | C001 - Distance-coded reference marks with nominal increment 1000 x grating period |
| Further reference marks | none |
| Reference pulse width | 90° |
| Max. scanning frequency | 50.00 kHz |
| Fault detection signal | for disturbance LOW |
| Power supply | 5V+-5% |
| Electrical connection | Flange socket, male, 14-pin |
| Special characteristics, linear encoder | none |
