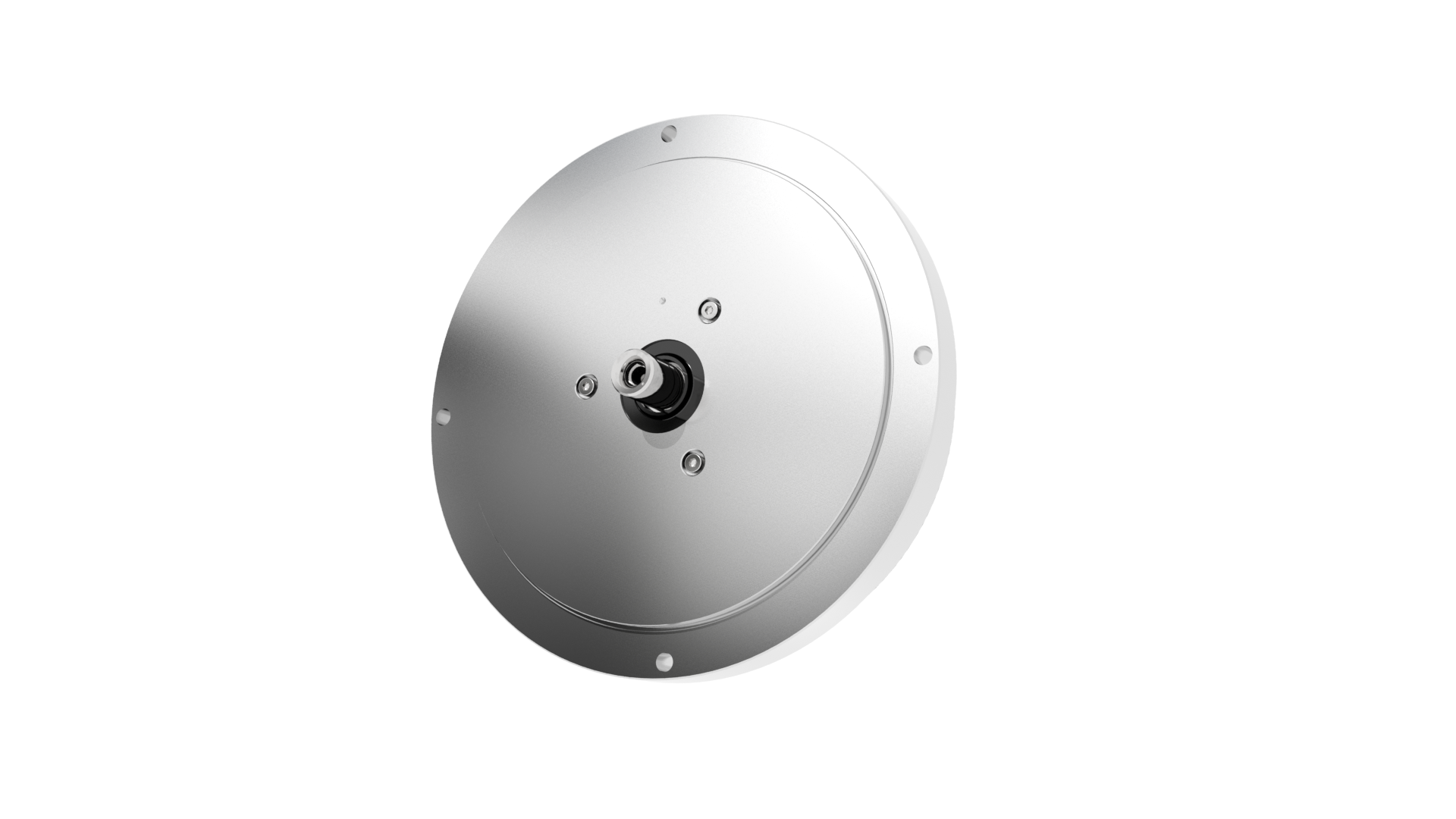

Absolute angle encoders with integral bearing for separate shaft coupling
ROC 7000 series
ROC 7380 16384 03S17 7V K 1.00 02 2.0 77A 63B 64 01 .. EnDat02 37 01
| Ident number | 1110418-01 |
|---|---|
| System accuracy | ± 2.0'' |
| Data interface | EnDat02 |
| Positions per revolution | 268435456 |
| Line count | 16384 |
| Cutoff frequency (-3 dB) | 400.00 kHz |
| Power supply | 3.6 V ... 14 V |
| Shaft | Solid shaft, diameter 14 mm, length 20 mm, with internal thread M6, depth 16 mm |
| Flange version | Flange with 170 mm outside diameter and 140 mm centering collar, aluminum |
| Degree of protection | IP64 (EN60529) |
| Cable length | 1.00 m |
| Cable type | PUR Ø 6.0 mm |
| Electrical connection | Coupling M23, male, 17-pin |
| Connecting direction | Cable outlet for axial and radial use |
| Pin configuration | D512235 |
