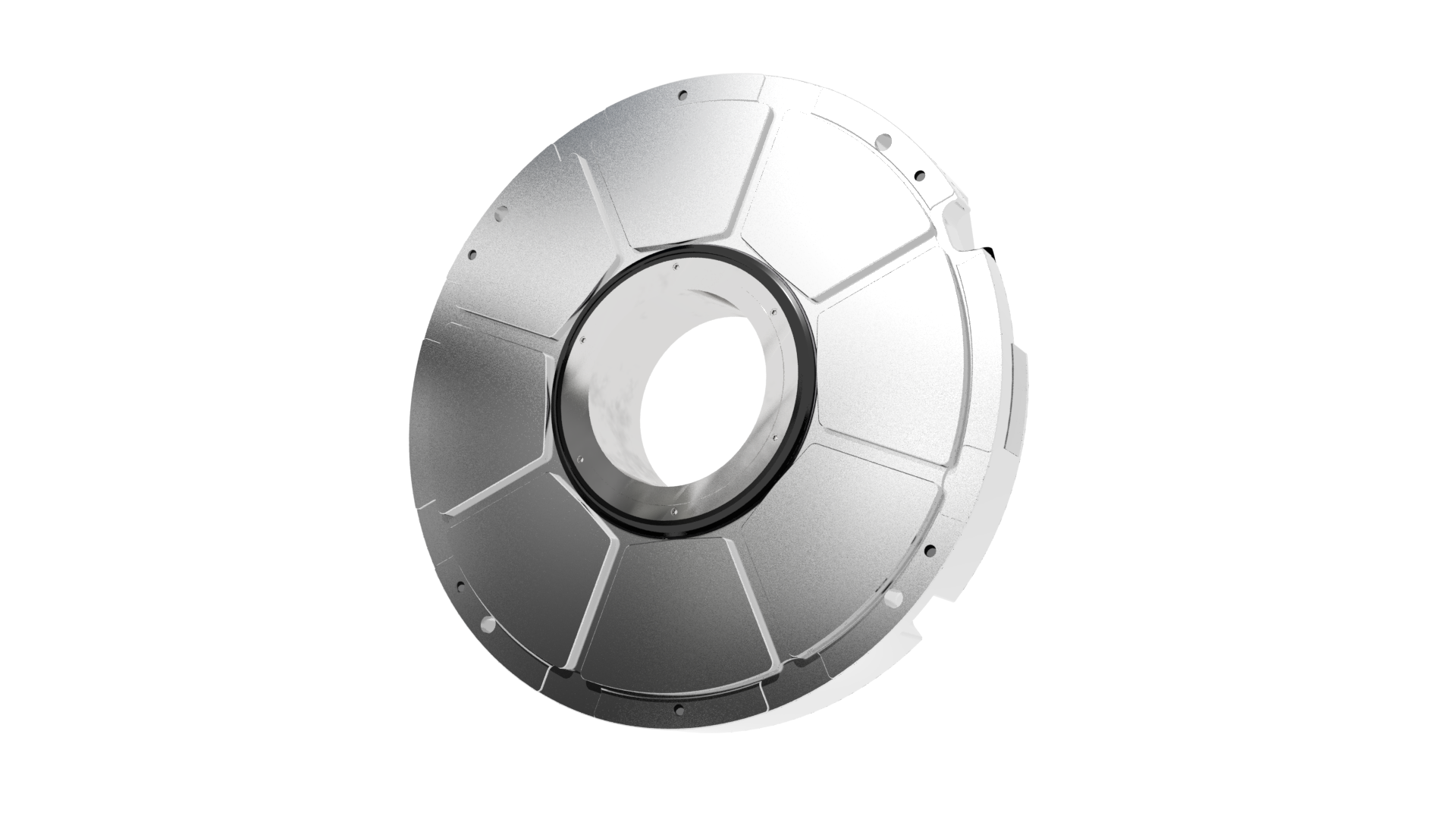

Incremental angle encoders with integral bearing and built-in stator coupling
RON 700/800 / RPN 886 series
RON 786C 18000 03S12-03 K 3.00 02 29A 54C 64 01 .. R4 ~1Vpp 07 1
| Ident number | 355884-07 |
|---|---|
| Line count | 18000 |
| System accuracy | ±2.0'' |
| Output signal | sinusoidal voltage signals (1 Vpp) |
| Cutoff frequency (-3 dB) | 180.00 kHz |
| Reference mark | analog, ref. mark coded, nominal increment 1000 |
| Power supply | 5 V (+-10 %) |
| Flange version | Flange with 200 mm outside diameter and 180 mm centering collar, drainage channels, aluminum |
| Shaft | Hollow shaft, diameter 60 |
| mm Degree of protection for housing | IP64 (EN60529) |
| Operating temperature | 0/+50 °C |
| Electrical connection | Coupling M23, male, 12-pin |
| Pin configuration | D294999 |
| Connecting direction | Cable outlet for axial and radial use |
| Cable length | 3.00 m |
| Cable type | PUR Ø 6.0 mm |
| Special characteristics, rotational encoders | none |
