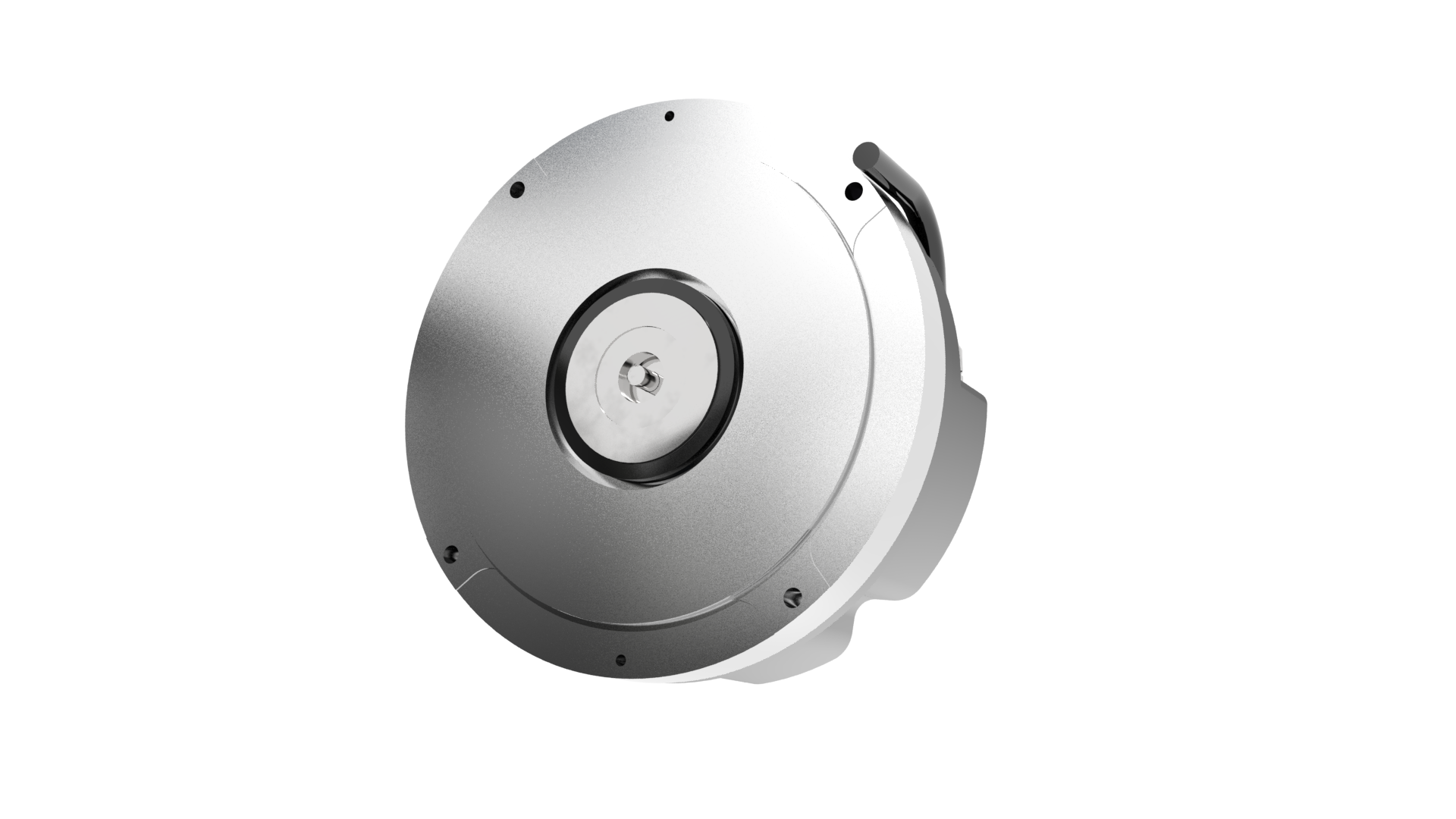

Incremental angle encoder with integral bearing and built-in stator coupling
RON 905 serie
RON 905 -36000 MR KG01,00IP64
| Ident number | 229352-01 |
|---|---|
| Line count | 36000 |
| System accuracy | +/-0,4" |
| Output signals | sinusoidal signals (11µA) |
| Operating temperature | +10/+30°C |
| Electrical connection | connector, male 9-pin |
| Connecting direction | Cable outlet radial |
| Cable length | 1.00 m |
