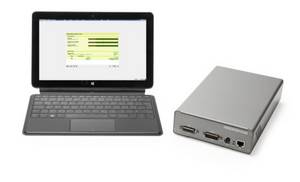

Echipamente de măsurare și testare: PWM 21 - HEIDENHAIN

Specifications

Inspection device	PWM 21
Area of application	Functional testing of absolute and incremental HEIDENHAIN encoders Mounting wizard for ExI, LIP 200, LIC 4100, and others
Encoder input only for HEIDENHAIN encoders	EnDat 2.1 or EnDat 2.2 (absolute value with or without incremental signals) DRIVE-CLiQ Fanuc Serial Interface Mitsubishi high speed interface Panasonic Serial Interface Yaskawa Serial Interface SSI 1 VPP (3 VPP for servicing purposes only) 1 VPP with Z1 track 11 µAPP (25 µAPP for servicing purposes only) TTL HTL (via signal adapter, for servicing purposes only)
Encoder output	Monitoring mode for certain interfaces (see Range of functions > Diagnostics); (an SA 100 or SA 110 signal adapter is required for galvanic isolation)
Interface	USB 2.0 (High Speed)
Supply voltage	AC 100 V to 240 V (±10 %), 50 Hz to 60 Hz (±2 Hz) Voltage supply: DC 24 V (±2.4 V) Power consumption: approx. 20 W
Operating temperature	0 °C to 45 °C
Protection EN 60529	IP20
Dimensions	258 mm × 154 mm × 55 mm

Adjusting and testing software

Adjusting and testing software	ATS software V3.4
System requirements and recommendations	PC with dual-core processor > 2 GHz Main memory > 2 GB  500 MB of free memory space Screen resolution ≥ 1024 x 768 Operating system: Windows 7, 8, 10 (32-bit or 64-bit)
Product key	Management of product keys for optional functions
Languages	German, English, French, Italian, Spanish, Korean, Chinese (simplified), Chinese (traditional)
