Specifications |
|
|
Components |

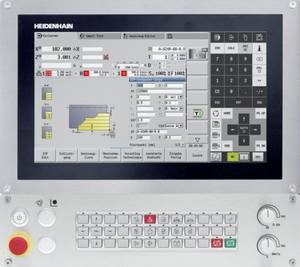

MC main computer with integrated 15.6-inch screen (1366 × 768 pixels) for CC or UEC controller unit Machine operating panel with 36 exchangeable snap-on keys as well as spindle |
|
Operating system |
HEROS 5 real-time operating system for machine control |
|
NC program memory |
1.8 GB (on CFR compact flash memory card) |
|
Input resolution and display step |
X axis: 0.5 µm, diameter: 1 µm U, V, W, Y, Z axes: 1 µm B, C1/C2 axes: 0.001° |
|
Interpolation |
Straight line: in two principal axes (max. ±100 m), optional in three principal axes Circle: in two axes (radius max. 999 m), optional additional linear interpolation in the third axis C1/C2 axis: interpolation of X and Z linear axes with the C1/C2 axis (option) B axis: interpolation of the X, Z, Y, B, C axes (max. four axes) |
|
Feed rate |
mm/min or mm/revolution Constant surface speed Max. feed rate (60 000/pole pair number × spindle pitch) with fPWM = 5000 Hz |
|
Main spindle |
Maximum of 60 000 rpm (with option 49: max. 120 000 rpm) for motors with one pole pair |
|
Axis feedback control |
Integrated digital drive control for synchronous and asynchronous motors Position loop resolution: signal period of the position encoder/1024 Cycle time of position controller: 0.2 ms Cycle time of speed controller: 0.2 ms Cycle time of current controller: minimum 0.05 ms |
|
Error compensation |
Linear and nonlinear axis error, backlash, reversal spikes during circular movements Static friction |
|
Data interfaces |
1000BASE-T Gigabit Ethernet interface MC 7410 T: 5 x USB (1 x front USB 2.0; 4 x back panel USB 3.0) MC 8420 T: 4 x back panel USB 3.0 |
|
Diagnostics |
Fast and simple troubleshooting through integrated diagnostic aids |
|
Ambient temperature |
Operation: in electrical cabinet: 5 °C to 40 °C Storage: –20 °C to 60 °C |
